Push Button Switches & Components

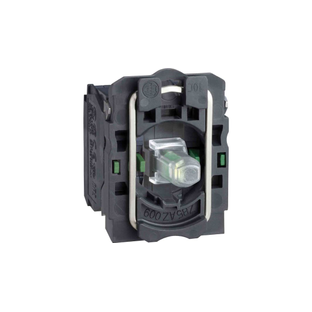

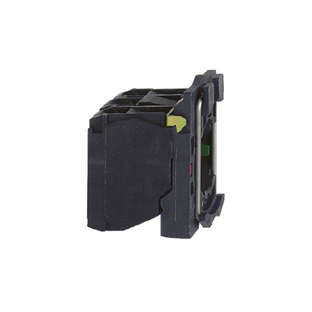

Push Button Contact Blocks & Light Blocks

View Table

Series

ZB

Harmony XB4

XB4

Harmony XAL

ZB

Harmony XB4

Voltage Rating

48 → 120 V ac

30 V ac/dc

24 → 120 V

12 → 24 V

48 → 120 V ac

30 V ac/dc

Contact Configuration

2 NC

1 NO

1 NC

1 NO + 1 NC

2 NC

1 NO

Current Rating

10 A

14 mA

18 mA

6 A

10 A

14 mA

Illumination Colour

White

Red

Yellow

Green

White

Red

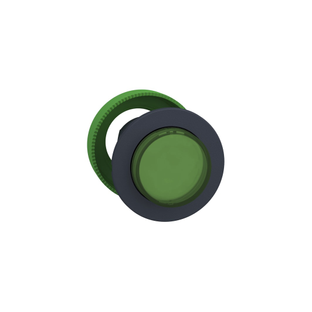

Push Button Heads

View Table

Range of Product

Harmony XB5

Harmony XALF Harmony XB5

Harmony XB4

Harmony XB5 Harmony XALF

Harmony XB5

Harmony XALF Harmony XB5

Standard

UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60947-1 JIS C 852 JIS C8201-1

EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C 852 UL 508 JIS C8201-1

IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 UL 508 JIS C 852 IEC 60947-1 JIS C8201-1

ISO 13850 IEC 60947-5-1 CSA C22.2 No 14 IEC 60364-5-53 JIS C8201-5-1 UL 508 IEC 60947-1 GB 14048.5 IEC 60947-5-4 IEC 60947-5-5 IEC 60204-1 JIS C8201-1

UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60947-1 JIS C 852 JIS C8201-1

EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C 852 UL 508 JIS C8201-1

IP Degree of Protection

IP69K

IP66, IP67, IP69(IP69K)

IP67, IP69K

IP66, IP67, IP69K

IP69K

IP66, IP67, IP69(IP69K)

Mechanical Durability

2000000 cycles

5000000 cycles

10000000 cycles

500000 cycles

2000000 cycles

5000000 cycles

Cap/Operator or Lens Colour

Black

Black, White

Orange

White

Black

Black, White

Push Button Switches

View Table

Contacts Type And Composition

1 NO + 1 NC

2 NO

1 NO

1 NC

1 NO + 1 NC

2 NO

Operator Profile

Orange flush, unmarked

Green projecting, unmarked

Black flush, unmarked

Black flush

Orange flush, unmarked

Green projecting, unmarked

Standards

EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-5-1 JIS C8201-1

UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1

IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 IEC 60947-5-1 JIS C8201-1

IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-5-4 UL 508 IEC 60947-1 JIS C8201-1

EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-5-1 JIS C8201-1

UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1

Terminals Description Iso N°1

(11-12)NC

(21-22)NC (13-14)NO

(21-22)NC

(13-14)NO (21-22)NC

(11-12)NC

(21-22)NC (13-14)NO

Electrical Reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
