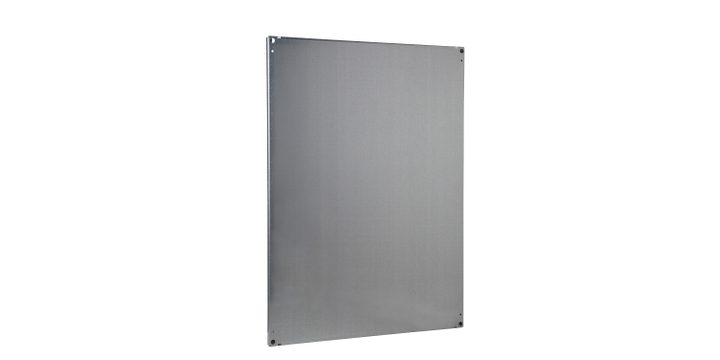

Schneider Electric NSYMP188 1800x800 Mm - Spacial SF/SM Mounting Plate

Spacial SF/SM mounting plate. H is1800 x W is800 mm. Depth is 27 mm. Multi-purpose mounting accessory. Fixing mode by brackets. Permanent permissible load is 500 kg intermediate position, 600 kg on back. Galvanised steel. 1 mounting plate, 2 sliding shoes incl.

Main

• Range: Spacial
• Accessory/Separate Part Category: Mounting Accessory
• Product or Component Type: Mounting Plate
• Device Application: Multi-purpose
• Enclosure Nominal Dimensions: Not specified
• Mounting Plate Description: Plain
• Range Compatibility:
• Spacial SF
• Spacial SM
• Spacial SFX
• Spacial SMX
• Device Composition:
• 1 Mounting Plate
• 2 Sliding Shoes
• Quantity per Set: Set of 1
• Material: Galvanised Steel

Complementary

• Fixing Mode: By fixing brackets
• Maximum Load: 300 kg/m²
• Permanent Permissible Load:
• 500 kg at intermediate position
• 600 kg at the back of the enclosure
• Height:
• Fixing Centers: 1650 mm
• Nominal: 1800 mm
• Real: 1697 mm
• Width:
• Nominal: 800 mm
• Fixing Centers: 650 mm
• Real: 696 mm
• Depth: 27 mm
