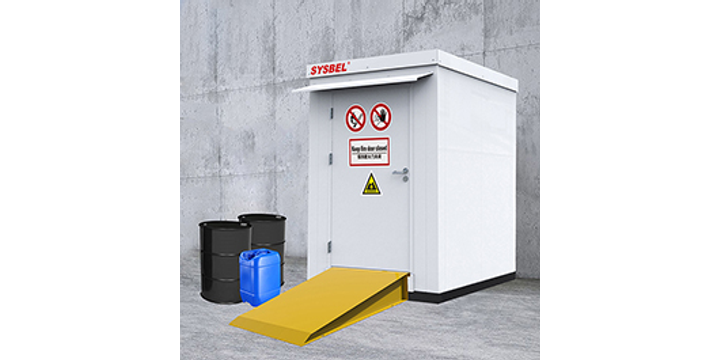

Sysbel WA530021 Outdoor Fire Resistant Safety Storage Cabinets
- Door type: Single Open / Class A Fireproof Door
- Fireproof class (h): 2.5
- Fire resistance test standard: GB/T 9978.1-2008
- External dimension (H×W×D/CM): 250×180×180
- Packing Dimension (H×W×D/CM): 200×150×150
- Product liability insurance (RMB): 10,000,000
- The amount of leakage: 400
- Volume: 4
- Ventilation device: Standard configuration
- Color: White
- Bearing capacity: 1000 Kg/㎡
- Model: WA530021
1. The whole cabinet is tested for fire resistance according to GB/T 9978.1-2008 "Fire resistance test methods for building components - Part 1: General requirements", and the fire resistance time of the whole cabinet reaches 2.5h. The temperature rise inside the cabinet should not be higher than 180℃ within 2.5h.
2. The cabinet adopts a double-layer steel plate structure, and the compartment is filled with fire-resistant materials, which has excellent flame-retardant and fire-resistant performance.
3. The cabinet adopts electrostatic spraying method, sprayed with outdoor special plastic powder, which can effectively resist the invasion of ultraviolet rays and rain, and has better weather resistance.
4. There is a drain tank at the bottom of the cabinet to effectively deal with the accumulated liquid in the cabinet, which meets the standard requirements of Part 264 of the EPA 40CFR264.175 Environmental Protection Law.
5. The base of the cabinet is welded with high-strength channel steel, with a slot, and can be equipped with a forklift to facilitate the movement of the cabinet.
6. The four corners of the cabinet are provided with stainless steel expansion bolts and the ground for good fixation, which effectively ensures the stability of the cabinet in bad weather.
7. It is equipped with a ventilation and ventilation device as standard, and is equipped with a UL certified flame arrester. When the ambient temperature reaches 70 °C, the ventilation opening will be automatically closed. Stainless steel rodent mesh is installed inside the vents.
8. The cabinet is equipped with steel hot-dip galvanized grille, which can effectively carry heavy objects such as oil drums.
9. The cabinet is in strict accordance with OSHA specifications, and the cabinet is provided with an electrostatic grounding conduction port, which is convenient for installation of electrostatic connection lines.
10. The eye-catching label can be recognized in low-visibility light, providing additional security.
11. Comply with EPANFPA30 and NFPA1 requirements.
