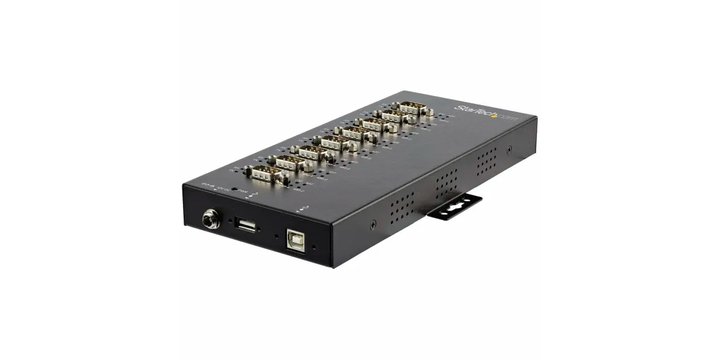

Startech ICUSB234858I RS232, RS422, RS485 Usb B Male to D-sub, 9 Pin Male Interface Converter

The expertly designed serial adapter from StarTech offers the ability to expand on serial connection via just one USB connection. With 8x DB 9 connection points, the hub enables users to use RS232, RS422, and/or RS485 cables to transfer data. Each port boasts COM port retention to keep all values saved for quick and easy installation.

Range of Connections

StarTech.com’s serial converter gives the user choice for what they want to connect up to their computer, as it is not limited to one serial protocol. This enables users to connect, monitor and control a variety of devices, supporting 2-wire (RS-232, RS422) and 4-wire (RS-485) operating output modes.

Built for Harsh Environments

This serial adapter converter is enclosed in a black IP30-rated all-metal chassis, designed to withstand the harsh industrial environments. It has a built-in wall-mounting bracket and includes a DIN rail mounting kit too. To prevent accidental disconnections on the included USB cable, the serial connector features screw-locking on both USB-B and host connection ends. Not only that, 15Kv of ESD protection is provided, reducing downtime where communication lines are more susceptible to sudden voltage spikes or noise emissions. This makes its reliable performance in no doubt for the mission-critical environments.

Speedy Data Transfer

This adapter features a high-speed UART, providing fast data rates of up to 921Kbps in any of the operating modes.

Features and Benefits

• 1x 6ft USB cable USB A to B
• 8x Serial ports
• Connect RS232, RS422, RS485
• 14kV ESD protection
• Din rails included
• Wall-mountable
• All metal chassis
• Screw-lock host connection
• 921.6Kbps max data transfer baud rate
• COM port retention
• Self-powered
• Includes external power adapter
• Plug-and-play

What are the applications for this hub?

This hub can be used to connect, monitor and control the likes of LED signage, sensors, barcode scanners, amongst other serial devices. The adapter is great to connect and monitor industrial and automotive sensors/equipment. It’s also good for serial modems and satellite receivers.

What is a USB to RS232 converter?

A USB to serial adapter is a way of connecting peripheral devices that feature a 9 pin connection, typically in industrial environments, to transfer data from a computer.

What’s in the box?

• 1x USB to serial hub
• 1x 6ft USB B to USB A (screw lock) cable
• 1x DIN rail kit
• 1x Universal power adapter (NA/JP, UK, EU, ANZ)
• 1x User guide

Chipset Manufacturer

FTDI,Genesys Logic

Chipset Model

FT4232H, GL825

What is the Serial Protocol of this Adapter?

RS-232/422/485

Maximum Baud Rate

921.6kbit/
