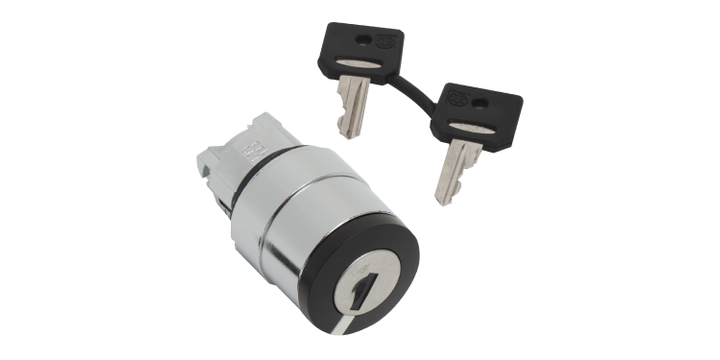

Schneider Electric ZB4BG210 Head for Key Selector Switch, Harmony XB4, Metal, Black, 22mm, Key 458A, 2 Positions, Stay Put
Schneider Electric ZB4BG210 Head for Key Selector Switch, Harmony XB4, Metal, Black, 22mm, Key 458A, 2 Positions, Stay Put
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB4BG210 |
Specifications
Please select at least one specification below.
Standards
CSA C22.2 No 14
EN/IEC 60947-5-1
GB 14048.5
EN/IEC 60947-5-4
EN/IEC 60947-5-5
EN/IEC 60947-1
UL 508
Ip Degree Of Protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
Product Certifications
UL listed
GL
DNV
CSA
LROS (Lloyds register of shipping)
BV
Mounting Diameter
22 mm
Bezel Material
Chromium plated metal
Product Or Component Type
Head for key selector switch
This spec is not available in the specification table.
Range Of Product
Harmony XB4
This spec is not available in the specification table.
Overvoltage Category
Class I conforming to IEC 60536
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-40…70 °C
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Device Presentation
Basic element
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Resistance To High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Electrical Composition Code
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting
C5 for <5 contacts using single blocks in front mounting
C6 for <5 contacts using single and double blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Shape Of Signaling Unit Head
Round
This spec is not available in the specification table.
Operator Profile
Black key switch
This spec is not available in the specification table.
Head Type
Standard
This spec is not available in the specification table.
Operator Position Information
2 positions 90°
This spec is not available in the specification table.
Type Of Keylock
Key 458A
This spec is not available in the specification table.
Key Withdrawal Position
Left
This spec is not available in the specification table.
Product Description
S$ 60.50
(exc. GST)
S$ 65.95
(inc. GST)
