Schneider Electric XVLA335 Pilot Light, Harmony Xvl, Plastic, Yellow, 12mm, Covered Led, 24V Dc

View Brand

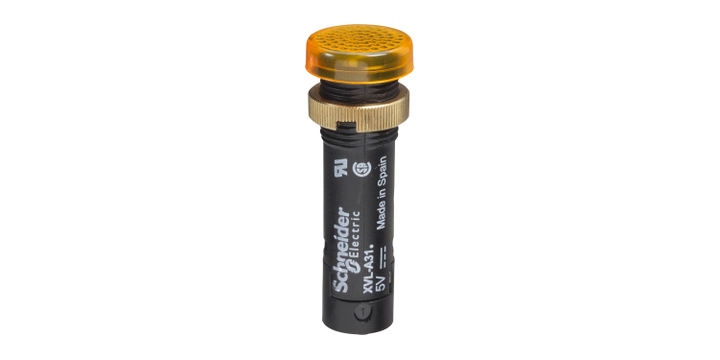

Schneider Electric XVLA335 Pilot Light, Harmony Xvl, Plastic, Yellow, 12mm, Covered Led, 24V Dc

Brand:	SCHNEIDER ELECTRIC
Model:	XVLA335

Technical Data Sheets

Product Datasheet

Catalogue

Environmental disclosure

Specifications

View other Pilot Lights dimensions or variations

Width

16 mm

Depth

51 mm

Connections - terminals

Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm²

Height

16 mm

IP Degree of Protection

IP65 (with seal XVLZ912) conforming to IEC 60529 IP65 (with seal XVLZ912) conforming to NF C 20-010 IP40 conforming to IEC 60529 IP40 conforming to NF C 20-010

Ambient air temperature for operation

-25…70 °C

[Us] Rated Supply Voltage

24 V

Mounting Diameter

12 mm

Current Consumption

18 mA

Product or component type

LED pilot light with integral lens cap

Range of product

Harmony XVL

[Ui] rated insulation voltage

50 V conforming to IEC 60947-1

Overvoltage category

Class 3 conforming to IEC 60536 Class 3 conforming to NF C 20-030

Ambient air temperature for storage

-40…70 °C

Product Certifications

CSA UL

Light Source

Covered LED

Terminals Description Iso N°1

(X1-X2)PL

Product Description

S$ 13.80

(exc. GST)

S$ 15.04

(inc. GST)

Quantity:

This item is sold by

Schneider Electric
