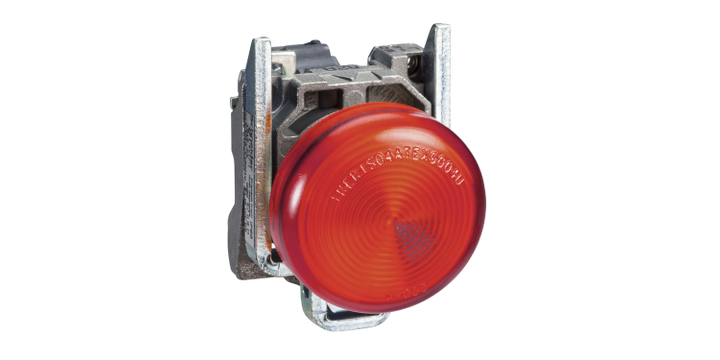

Schneider Electric XB4BV64 Pilot Light, Harmony XB4, Metal, Red, 22mm, Plain Lens With BA9s Bulb, Lt 250V
Schneider Electric XB4BV64 Pilot Light, Harmony XB4, Metal, Red, 22mm, Plain Lens With BA9s Bulb, Lt 250V
Brand: | SCHNEIDER ELECTRIC |
Model: | XB4BV64 |
Specifications
Please select at least one specification below.
Width
30 mm
Depth
55 mm
Standards
UL 508
JIS C8201-5-1
IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-1
IEC 60947-5-4
IEC 60947-5-5
JIS C8201-1
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Height
47 mm
IP Degree of Protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
Ambient air temperature for operation
-40…55 °C
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
[Us] Rated Supply Voltage
<= 250 V
Mounting Diameter
22.5 mm
Shape Of Signaling Unit Head
Round
Cap/Operator Or Lens Colour
Red
Product or component type
Pilot light
This spec is not available in the specification table.
Range of product
Harmony XB4
This spec is not available in the specification table.
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-1
This spec is not available in the specification table.
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Ambient air temperature for storage
-40…70 °C
This spec is not available in the specification table.
Device presentation
Complete product
This spec is not available in the specification table.
Product Certifications
UL listed
CSA
This spec is not available in the specification table.
Ik Degree Of Protection
IK06 conforming to IEC 50102
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Electrical Shock Protection Class
Class I conforming to IEC 60536
This spec is not available in the specification table.
Resistance To High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Light Source
Bulb not included
This spec is not available in the specification table.
Bulb Base
BA 9s
This spec is not available in the specification table.
Terminals Description Iso N°1
(X1-X2)PL
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Operator Additional Information
With plain lens
This spec is not available in the specification table.
Light Block Supply
Direct <2.4 W
This spec is not available in the specification table.
Fixing Collar Material
Zamak
This spec is not available in the specification table.
Bezel Material
Chromium plated metal
This spec is not available in the specification table.
Head Type
Standard
This spec is not available in the specification table.
Product Description
S$ 21.50
(exc. GST)
S$ 23.44
(inc. GST)
