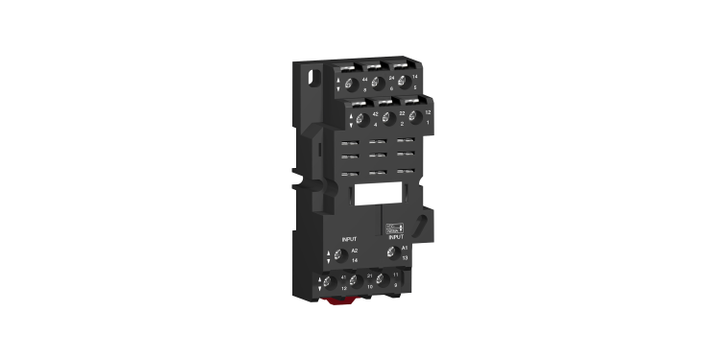

Schneider Electric RPZF3 Socket, Harmony Electromechanical Relays, for RPM3 Power Relays, 16A Screw Clamp Terminals, Mixed Contact

Schneider Electric RPZF3 Socket, Harmony Electromechanical Relays, for RPM3 Power Relays, 16A Screw Clamp Terminals, Mixed Contact

Brand:	SCHNEIDER ELECTRIC
Model:	RPZF3

Technical Data Sheets

Product Datasheet

Environmental disclosure

Specifications

View other Socket Relay dimensions or variations

Standards

IEC 61984

[Uimp] Rated Impulse Withstand Voltage

4 kV

Connections - Terminals

- screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16 - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14 - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16

Ip Degree Of Protection

IP20 conforming to IEC 60529

Pollution Degree

3

Ambient Air Temperature For Operation

-40…55 °C

Tightening Torque

< 1 N.m for M3.5 screw(s)

[Ue] Rated Operational Voltage

< 250 V

[Ith] Conventional Free Air Thermal Current

16 A

Contacts Type And Composition

3 C/O

Range of product

Harmony Electromechanical Relays

Overvoltage Category

III

Ambient Air Temperature For Storage

-40…85 °C

Fixing Mode

By screw (panel) Clip-on (35 mm symmetrical DIN rail)

Product Certifications

CSA UL

Product Compatibility

Plug-in relay RPM with 3 C/O contact

Dielectric Strength

2500 V

Shape Of Pin

Flat

Contact Terminal Arrangement

Mixed

Product Description

S$ 18.20

(exc. GST)

S$ 19.84

(inc. GST)

Quantity:

EA

This item is sold by

Schneider Electric

Shop by Specification Table

You can find items with similar specifications from the table below.

socket-relay-img

IEC 61984 UL 508, IEC 61984 CSA C22.2 No 14 UL 508, IEC 61984, UL 508 CSA C22.2 No 14 IEC 61984, CSA C22.2 No 14 IEC 61984 UL 508

Connections - Terminals

Screw clamp terminals, 1 x 0.25...1 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw terminals, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Tightening Torque

< 0.4 N.m for M2.5 screw(s), < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s) < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s), < 1 N.m for M3 screw(s)

[Ue] Rated Operational Voltage

<250 V dc, <250 V, 5 → 24 V dc, 230 V ac/dc, 250 V, 300 V

[Ith] Conventional Free Air Thermal Current

6 A, 7 A, 12 A, 10 A, 16 A
