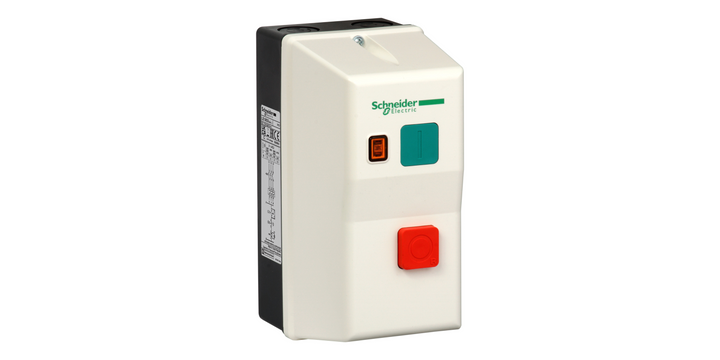

Schneider Electric LE1M35N722 Enclosed Dol Starter,tesys LE,12-16A,415V Ac Coil,including 1 LC1K,LR2K,2 Pushbuttons,yellow Indicator

View Brand

Schneider Electric LE1M35N722 Enclosed Dol Starter,tesys LE,12-16A,415V Ac Coil,including 1 LC1K,LR2K,2 Pushbuttons,yellow Indicator

Brand:	SCHNEIDER ELECTRIC
Model:	LE1M35N722

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Motor Starter dimensions or variations

Operating Temperature

-5…40 °C

Standards and Certifications

IEC 60947-4-1

Coil Voltage

415 V AC 50/60 Hz

Width

78 mm

Depth

108 mm

Ip Degree Of Protection

IP65 conforming to IEC 60529

Height

160 mm

Range

TeSys

Product Name

TeSys LE

Device Short Name

LE1M

Device Application

Standard

Utilisation Category

AC-3

Motor Power Kw

4 kW at 240 V AC 50/60 Hz 7.5 kW at 415 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz 3.7 kW at 220/230 V AC 50/60 Hz

Product Certifications

UKCA

Product Description

S$ 192.70

(exc. GST)

S$ 210.04

(inc. GST)
