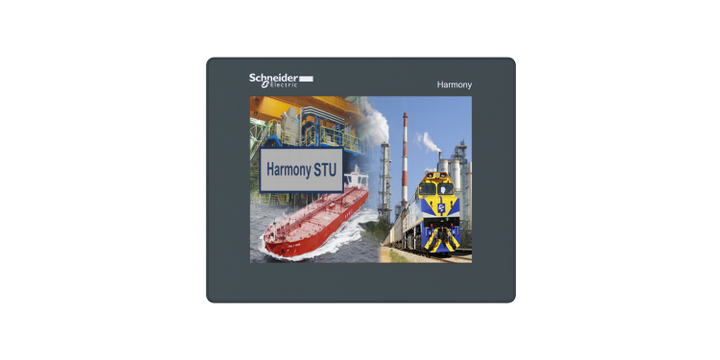

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Main
- Range of Product: Harmony STO & STU
- Product or Component Type: Touch panel screen
- Software Designation: Vijeo Designer
- Operating System: Harmony
- Processor Name: CPU ARM9
Complementary
- Display Size: 5.7 inch
- Display Type: QVGA TFT colour touchscreen
- Display Colour: 65536 colours
- Display Resolution: 320 x 240 pixels QVGA
- Touch Panel: Analogue
- Backlight Lifespan: 50000 hours
- Brightness: 16 levels
- Character Font:
- Taiwanese (traditional Chinese)
- Japanese (ANK, Kanji)
- Chinese (simplified Chinese)
- ASCII
- Korean
- Rated Supply Voltage: 24 V DC
- Supply: External source
- Supply Voltage Limits: 20.4…28.8 V
- Inrush Current: 30 A
- Power Consumption: 6.8 W
- Number of Pages: Limited by internal memory capacity
- Processor Frequency: 333 MHz
- Memory Description:
- Application Memory: 16 MB
- Backup of Data: 64 kB
- Integrated Connection Type:
- 1 USB 2.0 type mini B
- 1 USB 2.0 type A
- COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s)
- Power supply - removable screw terminal block
- 1 Ethernet - RJ45
- Realtime Clock: Access to the PLC real-time clock
- Downloadable Protocols: Uni-TE, Modbus TCP/IP, Third Party Protocols, Modbus
- Fixing Mode: Ø 22 mm hole
- Enclosure Material: PC/PBT and PAA
- Marking: With Schneider logo, CE
- Height: 129.15 mm
- Width: 163 mm
- Depth: 56.5 mm
Environment
- Immunity to Microbreaks: 7 ms
- Standards:
- UL 1604
- FCC Class A
- IEC 61000-6-2
- IEC 61131-2
- UL 508
- Product Certifications: UL class 1 Div2 T4A ou T5, C-Tick, cULus, Marine, UKCA
- Ambient Air Temperature for Operation: 0…50 °C
- Ambient Air Temperature for Storage: -20…60 °C
- Relative Humidity: 0…85 % without condensation
- Operating Altitude: <= 2000 m
- IP Degree of Protection:
- IP20 (rear panel) conforming to IEC 60529
- IP65 (front panel) conforming to IEC 60529
- NEMA Degree of Protection: NEMA 4X front panel (indoor use)
- Shock Resistance: 15 gn for 11 ms conforming to IEC 60068-2-27
- Vibration Resistance:
- +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
- 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
- Resistance to Electromagnetic Fields: 10 V/m conforming to IEC 61000-4-3
