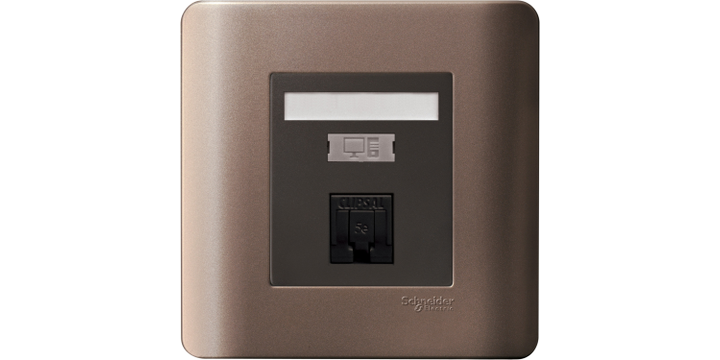

Schneider Electric E8431RJ_5_SZ Zencelo 1 Gang Data Outlet Category 5e With Integrated Shutter,silver Bronze
Schneider Electric E8431RJ_5_SZ Zencelo 1 Gang Data Outlet Category 5e With Integrated Shutter,silver Bronze
Specifications
infotip-icon
View other TV, Telephone & Internet Sockets dimensions or variations
Please select at least one specification below.
Width
87 mm
Material
Polycarbonate: plastic part
Product Or Component Type
Data socket
Depth
36 mm
Standards
ASTMD4566-98 TIA/EIA-568-B.2-1
Height
87 mm
Ambient Air Temperature For Operation
1…35 °C
Number Of Gangs
1 gang
Colour Tint
Silver bronze
Device Mounting
Surface Flush
Rated Current
1.5 A
Contact Resistance
1 µOhm
Awg Gauge
AWG 26...AWG 22 (4 twisted pair cables)
Range Of Product
ZENcelo
This spec is not available in the specification table.
Device Application
Communication
This spec is not available in the specification table.
Relative Humidity
0…95 %
This spec is not available in the specification table.
Contacts Material
Housing: PC Contact: phosphor bronze with gold plating IDC contact: phosphor bronze with nickel plating
This spec is not available in the specification table.
Environmental Characteristic
No UV resistant
This spec is not available in the specification table.
Insulation Resistance
>= 200 MOhm
This spec is not available in the specification table.
Dielectric Strength
1000 V for 60 s at 60 Hz
This spec is not available in the specification table.
Communication Network Category
Data: 5e
This spec is not available in the specification table.
Minimum Return Loss
23 dB
This spec is not available in the specification table.
