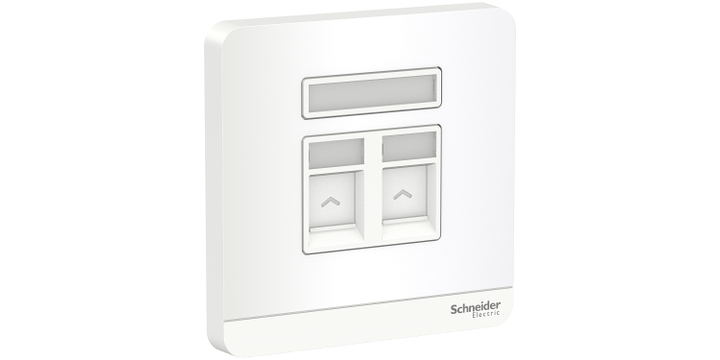

Schneider Electric E8332RJS6_WE_G2 Avataron, 2 Data Sockets, RJ45, cat6e, Shuttered, White
Schneider Electric E8332RJS6_WE_G2 Avataron, 2 Data Sockets, RJ45, cat6e, Shuttered, White
Brand: | SCHNEIDER ELECTRIC |
Model: | E8332RJS6_WE_G2 |
Specifications
Please select at least one specification below.
Width
86 mm
Material
Polycarbonate: plastic part
Product Or Component Type
Data socket
Depth
31 mm
Standards
ASTMD4566-98
TIA/EIA-568-B.2-1
Height
86 mm
Ip Degree Of Protection
IP20
Number Of Gangs
2 gangs
Colour Tint
White
Device Mounting
Surface
Flush
Rated Current
1.5 A
Contact Resistance
1 µOhm
Awg Gauge
AWG 26...AWG 22 (4 twisted pair cables)
Device Application
Communication
This spec is not available in the specification table.
Relative Humidity
0…95 %
This spec is not available in the specification table.
Device Presentation
Complete product
This spec is not available in the specification table.
Contacts Material
Housing: PC
Contact: phosphor bronze with gold plating
This spec is not available in the specification table.
Environmental Characteristic
UV resistant
This spec is not available in the specification table.
Insulation Resistance
>= 200 MOhm
This spec is not available in the specification table.
Dielectric Strength
1000 V for 60 s at 60 Hz
This spec is not available in the specification table.
Maximum Ambient Air Temperature For Operation
35 °C
This spec is not available in the specification table.
Socket Additional Information
Shuttered
This spec is not available in the specification table.
Communication Network Category
Data: 6e
This spec is not available in the specification table.
Data Socket Type
RJ45
This spec is not available in the specification table.
Minimum Return Loss
23 dB
This spec is not available in the specification table.
Product Description
S$ 47.50
(exc. GST)
S$ 51.78
(inc. GST)
