Schneider Electric ATV212WU40N4 Variable Speed Drive, Altivar 212, 4kW, 5hp, 480V, 3 Phases, With Emc Class C2, IP55

View Brand

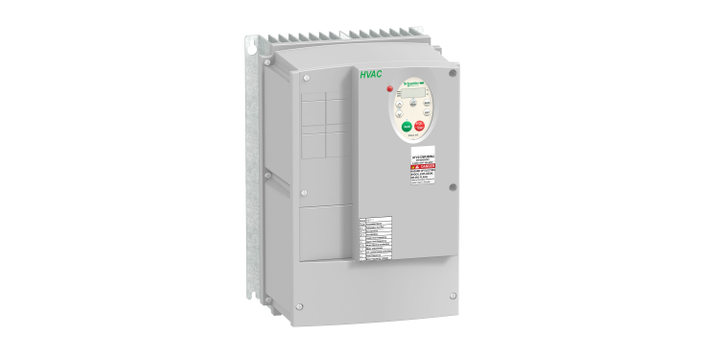

Schneider Electric ATV212WU40N4 Variable Speed Drive, Altivar 212, 4kW, 5hp, 480V, 3 Phases, With Emc Class C2, IP55

Brand:	SCHNEIDER ELECTRIC
Model:	ATV212WU40N4

Technical Data Sheets

Environmental disclosure

Specifications

View other Inverter Drives dimensions or variations

Local Signalling

1 LED (red) for DC bus energized

Range of Product

Altivar 212

Accuracy

+/- 0.6 % (VIA) for a temperature variation 60 °C +/- 0.6 % (VIB) for a temperature variation 60 °C +/- 1 % (FM) for a temperature variation 60 °C

Standard

IEC 61800-3 environments 2 category C2 IEC 61800-3 IEC 61800-3 environments 2 category C1 IEC 61800-3 category C2 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C3 EN 61800-3 category C3 IEC 61800-3 category C3 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 2 category C1 IEC 61800-5-1 IEC 61800-5-1 IEC 61800-3 category C2 EN 55011 class A group 1 IEC 61800-3 environments 1 category C2 IEC 61800-3 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C1

IP Degree of Protection

IP55 conforming to IEC 61800-5-1 IP55 conforming to IEC 60529

Ambient Air Temperature for Operation

-10…40 °C (without derating) 40…50 °C (with derating factor)

Ambient Air Temperature for Storage

-25…70 °C

Operating Altitude

1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 1000 m without derating

Vibration Resistance

1.5 mm (f= 3…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8

[Us] Rated Supply Voltage

380...480 V - 15...10 %

Supply Frequency

50...60 Hz - 5...5 %

Switching Frequency

6...16 kHz adjustable 12...16 kHz with derating factor

Noise Level

55 dB conforming to 86/188/EEC

Sampling Duration

2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog

Continuous Output Current

9.1 A at 380 V 9.1 A at 460 V

Width

230 mm

Device Short Name

ATV212

Product or Component Type

Variable speed drive

Depth

208 mm

Height

340 mm

Network Frequency

47.5...63 Hz

Pollution Degree

3 conforming to IEC 61800-5-1

Relative Humidity

5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3

Marking

Environmental Characteristic

Classes 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3

Analog Input Type

VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits

Electromagnetic Compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Motor Power kW

4 kW

Motor Power hp

5 hp

Minimum Switching Current

3 mA at 24 V DC for configurable relay logic

Insulation Resistance

>= 1 mOhm 500 V DC for 1 minute

Certifications

NOM 117 UL C-Tick CSA

Operating Position

Vertical +/- 10 degree

Product Specific Application

Pumps and fans in HVAC

Shock Resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Protection Type

Overheating protection: drive Thermal power stage: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC bus: drive Break on the control circuit: drive Against exceeding limit speed: drive Line supply overvoltage and undervoltage: drive Line supply undervoltage: drive Against input phase loss: drive Thermal protection: motor Motor phase break: motor With PTC probes: motor

Connector Type

1 RJ45 1 open style

Product Destination

Asynchronous motors

Output Voltage

<= power supply voltage

Analogue Input Number

Assembly Style

With heat sink

Maximum Switching Current

5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R)

Electrical Connection

VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14 L1/R, L2/S, L3/T: terminal 6 mm² / AWG 10

Network Number of Phases

3 phases

Communication Service

Monitoring inhibitable Read holding registers (03) 2 words maximum Time out setting from 0.1 to 100 s Read device identification (43) Write multiple registers (16) 2 words maximum Write single register (06)

Transient Overtorque

120 % of nominal motor torque +/- 10 % for 60 s

Speed Accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Supply Voltage Limits

323…528 V

Dielectric Strength

3535 V DC between earth and power terminals 5092 V DC between control and power terminals

Response Time

FM 2 ms, tolerance +/- 0.5 ms for analog output(s) FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s)

Type of Cable

Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC

Functionality

Mid

Spesific Application

HVAC

Torque Accuracy

+/- 15 %

Tightening Torque

1.3 N.m, 11.5 lb.in (L1/R, L2/S, L3/T) 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)

Product Description

S$ 1,655.80

(exc. GST)

S$ 1,804.82
