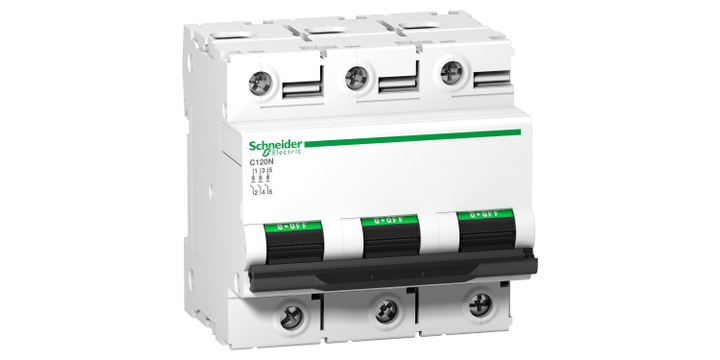

Schneider Electric A9N18388 Miniature Circuit Breaker (mcb), Acti9 C120N, 3P, 100A, D Curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Schneider Electric A9N18388 Miniature Circuit Breaker (mcb), Acti9 C120N, 3P, 100A, D Curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Brand: | SCHNEIDER ELECTRIC |
Model: | A9N18388 |
Specifications
Please select at least one specification below.
Range
Acti 9
Poles Description
3P
Network Type
AC
Number of Protected Poles
3
[In] Rated Current
100 A at 30 °C
Curve Code
D
Breaking Capacity
10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2
Standards
EN/IEC 60947-2
EN/IEC 60898-1
Magnetic Tripping Limit
10...14 x In
Connection - Terminals
Tunnel type terminals1…50 mm² rigid
Tunnel type terminals1.5…35 mm² flexible
IP Degree of Protection
IP20 conforming to IEC 60529
Ambient Air Temperature for Operation
-25…70 °C
Mechanical Durability
20000 cycles
Ambient Air Temperature for Storage
-40…85 °C
Electrical Durability
5000 cycles conforming to IEC 60947-2
Tightening Torque
3.5 N.m
Colour
White
This spec is not available in the specification table.
Width
81 mm
This spec is not available in the specification table.
Trip Unit Technology
Thermal-magnetic
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Device Short Name
C120N
This spec is not available in the specification table.
Product Name
C120
This spec is not available in the specification table.
Range of Product
C120
This spec is not available in the specification table.
Depth
73 mm
This spec is not available in the specification table.
Device Application
Distribution
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Network Frequency
50/60 Hz
This spec is not available in the specification table.
Suitability for Isolation
Yes conforming to IEC 60947-2
This spec is not available in the specification table.
[Ics] Rated Service Breaking Capacity
7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
10 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC
This spec is not available in the specification table.
Limitation Class
3 conforming to EN/IEC 60947-2
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz conforming to EN/IEC 60947-2
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to EN/IEC 60947-2
This spec is not available in the specification table.
Contact Position Indicator
Yes
This spec is not available in the specification table.
Mounting Support
35 mm symmetrical DIN rail
This spec is not available in the specification table.
Local Signalling
ON/OFF indication
This spec is not available in the specification table.
Overvoltage Category
IV
This spec is not available in the specification table.
Comb Busbar and Distribution Block Compatibility
YES
This spec is not available in the specification table.
9 mm Pitches
9
This spec is not available in the specification table.
Height
81 mm
This spec is not available in the specification table.
Pollution Degree
3 conforming to IEC 60947-2
This spec is not available in the specification table.
Relative Humidity
95 % at 55 °C
This spec is not available in the specification table.
Operating Altitude
2000 m
This spec is not available in the specification table.
Wire Stripping Length
15 mm
This spec is not available in the specification table.
Earth-Leakage Protection
Separate block
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
<= 375 V DC
380...415 V AC 50/60 Hz
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
230...400 V AC 50/60 Hz
This spec is not available in the specification table.
Product certifications
EAC
This spec is not available in the specification table.
Tropicalisation
2 conforming to IEC 60068-1
This spec is not available in the specification table.
Product Description
