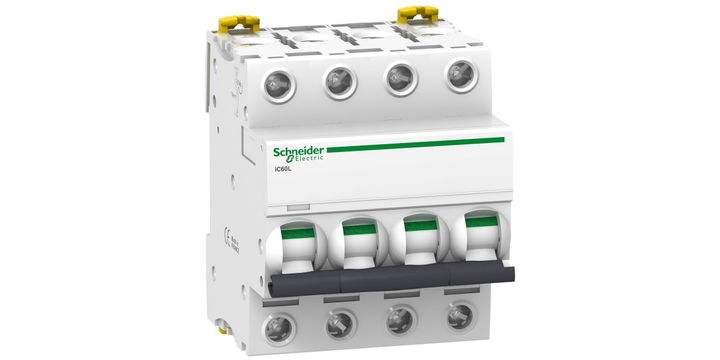

Schneider Electric A9F95402 Acti 9 iC60L Mcb, 4P, 2A Curve K, 15 Ka Breaking Capacity
Schneider Electric A9F95402 Acti 9 iC60L Mcb, 4P, 2A Curve K, 15 Ka Breaking Capacity
Specifications
infotip-icon
View other Miniature Circuit Breakers - MCBs dimensions or variations
Please select at least one specification below.
Range
Acti 9
Poles Description
4P
[In] Rated Current
2 A
Breaking Capacity
15 kA
Width
18 mm
This spec is not available in the specification table.
Depth
78.5 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Series Name
iC60L
This spec is not available in the specification table.
Length
85 mm
This spec is not available in the specification table.
Tripping Characteristics
Type K
This spec is not available in the specification table.
Circuit Breaker Type
MCB
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Product Description
