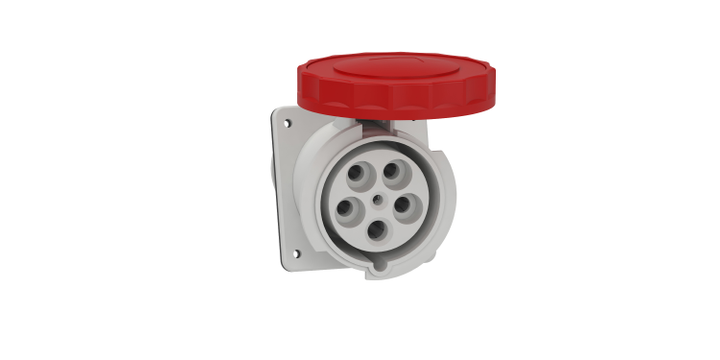

Schneider Electric 81295 125 a - Pratika Industrial Socket
Schneider Electric 81295 125 a - Pratika Industrial Socket
Specifications
infotip-icon
View other Industrial Sockets dimensions or variations
Please select at least one specification below.
Colour
Grey (RAL 7035)
Poles Description
3P + N + E
[In] Rated Current
125 A
Network Frequency
50/60 Hz
Standards
EN 60309-1 EN 60309-2
Ip Degree Of Protection
IP67 conforming to IEC 60529
Ambient Air Temperature For Operation
35 °C ( 86400 s )
[Ue] Rated Operational Voltage
380...415 V
Contacts Material
Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Range
Mureva
This spec is not available in the specification table.
Network Type
AC
This spec is not available in the specification table.
Mounting Mode
Panel-mounted
This spec is not available in the specification table.
Connections - Terminals
Captive screws, completely loosened
This spec is not available in the specification table.
Relative Humidity
50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
This spec is not available in the specification table.
Fire Resistance
850 °C conforming to IEC 60695-2-11
This spec is not available in the specification table.
Ik Degree Of Protection
IK08 conforming to EN 62262
This spec is not available in the specification table.
Outlet Standard
Industrial
This spec is not available in the specification table.
Cable Cross Section
16…70 mm²
This spec is not available in the specification table.
Plug, Socket Category
Low voltage
This spec is not available in the specification table.
Plug, Socket, Control Station Shape
Angled
This spec is not available in the specification table.
Ground Lug Clockwise Position
6 h
This spec is not available in the specification table.
Plug, Socket Material
Housing: self-extinguishing engineering polymer
This spec is not available in the specification table.
Voltage Colour
Red
This spec is not available in the specification table.
Base Dimension
110 x 114 mm
This spec is not available in the specification table.
