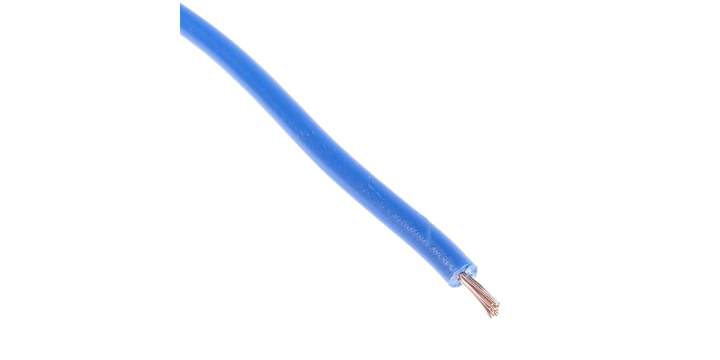

Rs Pro 9062704 Dark Blue 0.75 Mm² Hook up Wire, 20 Awg, 24/0.2 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 9062704 Dark Blue 0.75 Mm² Hook up Wire, 20 Awg, 24/0.2 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	9062704

Technical Data Sheets

RS PRO Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Current Rating

14 A

Voltage Rating

1 kV

Specification Met

CSA C22.2 Type TEW, UK BS6231, UL 1015

Sheath Colour

Dark Blue

Insulation Material

PVC

American Wire Gauge

20 AWG

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+105°C

Outer Diameter

2.8 mm

Size of Strands

0.2 mm

Conductor Material

Annealed Copper

Core Strands

24/0.2 mm

Cable Shape

Wire

Insulation Wall Thickness

0.8 mm

Product Description

S$ 44.14

(exc. GST)

S$ 48.11

(inc. GST)
