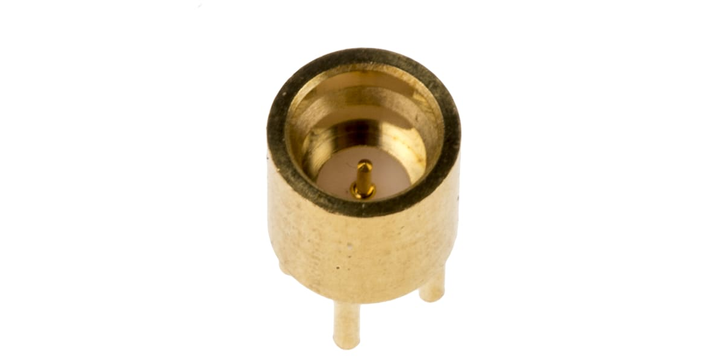

Rs Pro 8782422 50 Ohm Straight Pcb Mount, Smp Connector , Female, Male, Coaxial
Rs Pro 8782422 50 Ohm Straight Pcb Mount, Smp Connector , Female, Male, Coaxial
Brand:
RS Pro
Model:
8782422
Specifications
infotip-icon
View other Coaxial Connectors dimensions or variations
Please select at least one specification below.
Mounting Type
PCB Mount
Contact Material
Brass
Gender
Female, Male
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+165°C
Impedance
50 Ohm
Body Plating
Gold
Coaxial Connector Type
SMP Connector
Cable Type
Coaxial
Operating Frequency
18 GHz
Size
Standard
Mating Type
Snap On
This spec is not available in the specification table.
