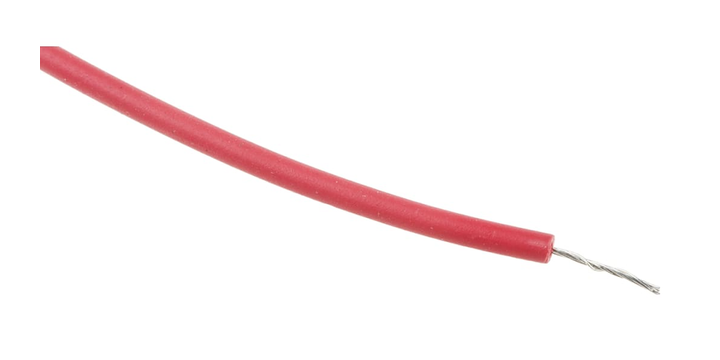

Rs Pro 8740273 Red 0.13 Mm² Hook up Wire, 26 Awg, 7/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 8740273 Red 0.13 Mm² Hook up Wire, 26 Awg, 7/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	8740273

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

600 V

Specification Met

RoHS Compliant, UL 1581, UL 758

Sheath Colour

Red

Insulation Material

XLPE

American Wire Gauge

26 AWG

Maximum Operating Temperature

+125°C

Outer Diameter

2.1 mm

Number of Strands

Size of Strands

0.16 mm

Conductor Material

Tinned Copper

Core Strands

7/0.16 mm

Wire Style

UL3173

Insulation Wall Thickness

0.8 mm

Product Description

S$ 43.47

(exc. GST)

S$ 47.38

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 43.47
