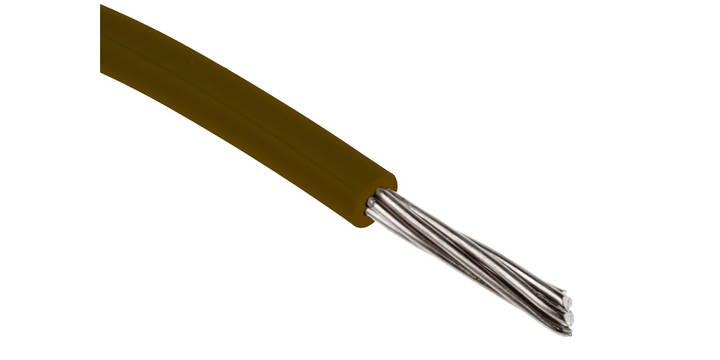

Rs Pro 8725218 Brown 0.2 Mm² Hook up Wire, 24 Awg, 11/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 8725218 Brown 0.2 Mm² Hook up Wire, 24 Awg, 11/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 8725218 Brown 0.2 Mm² Hook up Wire, 24 Awg, 11/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	8725218

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

300 V

Specification Met

UL 1581, UL 758

Sheath Colour

Brown

Insulation Material

XLPE

American Wire Gauge

24 AWG

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+125°C

Outer Diameter

1.43 mm

Number of Strands

Size of Strands

0.16 mm

Conductor Material

Tinned Copper

Core Strands

11/0.16 mm

Wire Style

UL3266

Insulation Wall Thickness

0.4 mm

Product Description

S$ 13.33

(exc. GST)

S$ 14.53

(inc. GST)

Quantity:

This item is sold by

SG-4570630354
