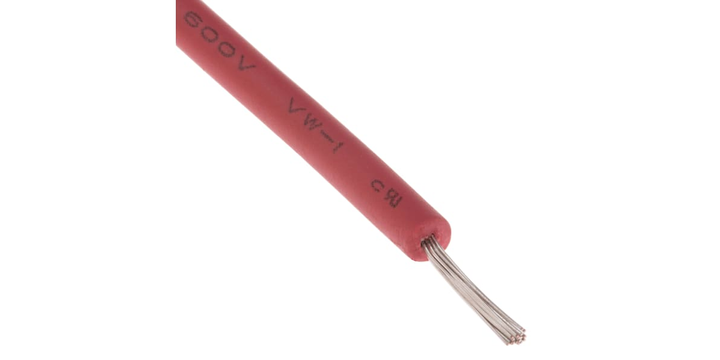

Rs Pro 8724391 Red 0.33 Mm² Hook up Wire, 22 Awg, 17/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100)

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 8724391 Red 0.33 Mm² Hook up Wire, 22 Awg, 17/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100)

View Brand

Rs Pro 8724391 Red 0.33 Mm² Hook up Wire, 22 Awg, 17/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100)

Brand:	RS Pro
Model:	8724391

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

600 V

Specification Met

UL 1581, UL 758

Sheath Colour

Red

Insulation Material

XLPE

American Wire Gauge

22 AWG

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+150°C

Outer Diameter

2.4 mm

Number of Strands

Size of Strands

0.16 mm

Conductor Material

Tinned Copper

Core Strands

17/0.16 mm

Wire Style

UL3321

Insulation Wall Thickness

0.8 mm

Product Description

S$ 62.14

(exc. GST)

S$ 67.73

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 62.14
