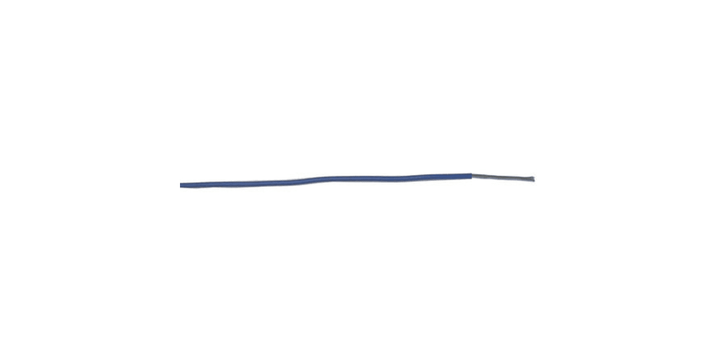

Rs Pro 8513595 Blue 0.22 Mm² Hook up Wire, 24 Awg, 7/0.2 Mm, 250m, Pvc Insulation (1 Reel of 250 Metres)

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 8513595 Blue 0.22 Mm² Hook up Wire, 24 Awg, 7/0.2 Mm, 250m, Pvc Insulation (1 Reel of 250 Metres)

View Brand

Rs Pro 8513595 Blue 0.22 Mm² Hook up Wire, 24 Awg, 7/0.2 Mm, 250m, Pvc Insulation (1 Reel of 250 Metres)

Brand:	RS Pro
Model:	8513595

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

Specifications

View other Electrical Wire dimensions or variations

Length

250 m

Voltage Rating

250 V

Specification Met

NFC 32070/C1, NFC 93521

Sheath Colour

Blue

Insulation Material

PVC

American Wire Gauge

24 AWG

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Outer Diameter

1.2 mm

Number of Strands

Size of Strands

0.2 mm

Conductor Material

Copper

Core Strands

7/0.2 mm

Cable Type

Harsh Environment

Cable Shape

Single Core

Product Description

S$ 52.11

(exc. GST)

S$ 56.80

(inc. GST)
