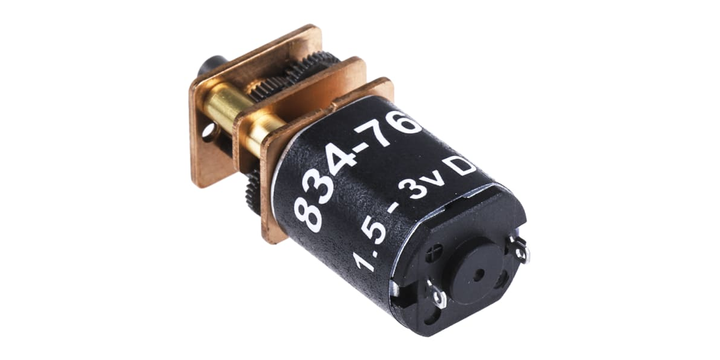

Rs Pro 8347647 Brushed Geared, 0.58 W, 3 V Dc, 9 Ncm, 45 Rpm, 3mm Shaft Diameter
Rs Pro 8347647 Brushed Geared, 0.58 W, 3 V Dc, 9 Ncm, 45 Rpm, 3mm Shaft Diameter
Brand:
RS Pro
Model:
8347647
Technical Data Sheets
Specifications
infotip-icon
View other Electric Motors dimensions or variations
Please select at least one specification below.
Width
12 mm
Length
24.25 mm
Current Rating
320 mA
Standards Met
RoHS Compliant
Supply Voltage
3 V dc
Power Rating
0.58 W
DC Motor Type
Brushed Geared
Output Speed
45 rpm
Shaft Diameter
3 mm
Maximum Output Torque
9 Ncm
Gearhead Type
Spur
Depth
12 mm
Series
951D
This spec is not available in the specification table.
Core Construction
Metal
This spec is not available in the specification table.
