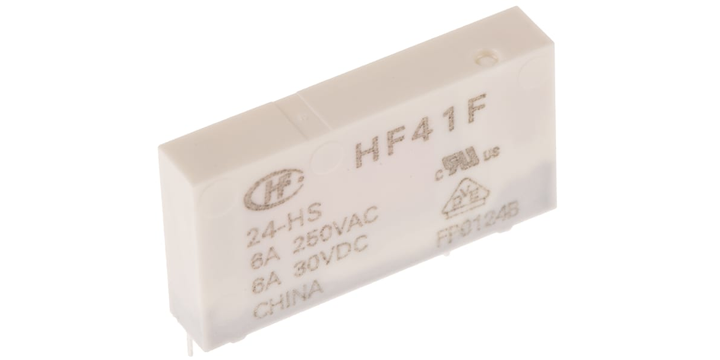

Rs Pro 8004552P Pcb Mount Power Relay, 24V Dc Coil, 6A Switching Current, Spst
Rs Pro 8004552P Pcb Mount Power Relay, 24V Dc Coil, 6A Switching Current, Spst
Brand:
RS Pro
Model:
8004552P
Technical Data Sheets
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
28 mm
Application
Power
Mounting Type
PCB Mount
Depth
5 mm
Height
15 mm
Contact Material
Silver Alloy
Contact Configuration
SPST
Coil Voltage
24 V dc
Standards Met
RoHS Compliant, UL E133481, VDE 40020043
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
400 V ac
Maximum Switching Voltage DC
125 V dc
Coil Power
170 mW
Coil Resistance
3390 Ohm
Isolation Coil To Contact
4 kV ac
Maximum Switching Power DC
180 W
Switching Current
6 A
Maximum Switching Power AC
1.5 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
10000000 (Mechanical) Operations, 60000 (Electrical) Operations
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
