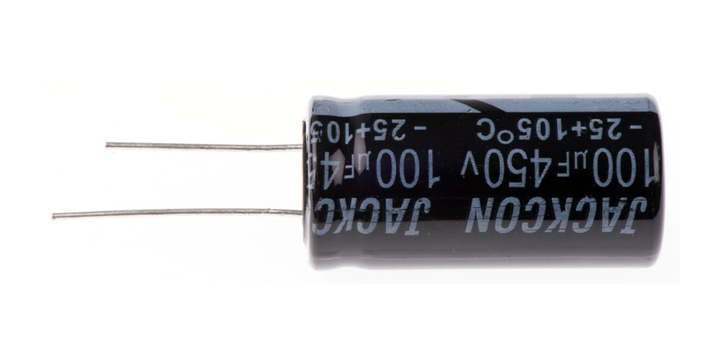

Rs Pro 7112166 100 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Radial, Through Hole

View Brand

Rs Pro 7112166 100 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7112166

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

450 VDC

Mounting Type

Radial, Through Hole

Dimensions

18 (Dia.) x 36 mm

Capacitance

100 µF

Lead Pitch

7.5 mm

Lifetime

2000h

Ripple Current

430 mA

Leakage Current

<=0.03 CV or 3 µA @ 1 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

S$ 16.16

(exc. GST)

S$ 17.61

(inc. GST)

Quantity:

MOQ of 2 EA

Bundle of 2 EA
