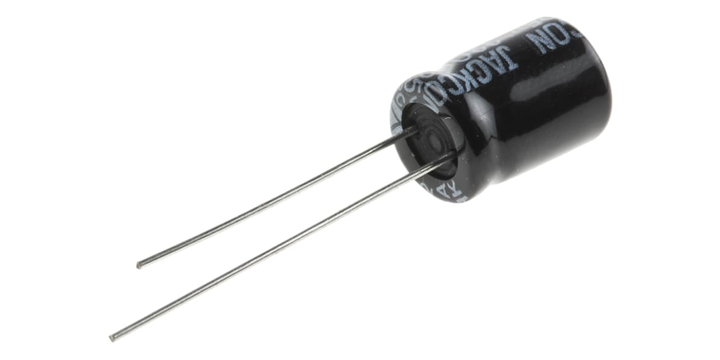

Rs Pro 7111104P 330 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

View Brand

Rs Pro 7111104P 330 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111104P

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

25 VDC

Mounting Type

Radial, Through Hole

Dimensions

8 (Dia.) x 11 mm

Capacitance

330 µF

Lead Pitch

3.5 mm

Lifetime

2000h

Ripple Current

350 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

14%

Tolerance

±20%

Product Description

S$ 51.75

(exc. GST)

S$ 56.41

(inc. GST)

Quantity:

MOQ of 250 EA

Bundle of 25 EA
