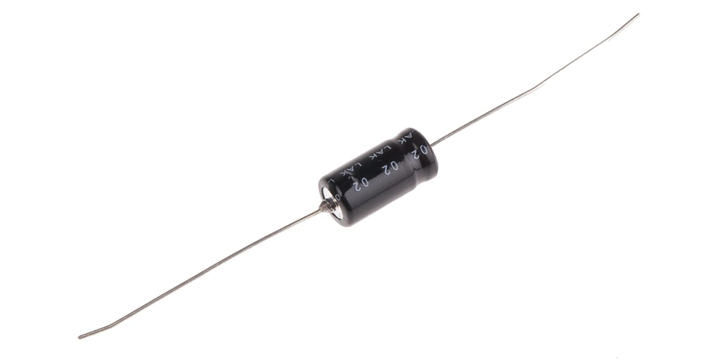

Rs Pro 7076571 220 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Axial, Through Hole

View Brand

Rs Pro 7076571 220 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Axial, Through Hole

Brand:	RS Pro
Model:	7076571

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

16 VDC

Mounting Type

Axial, Through Hole

Dimensions

8 (Dia.) x 16 mm

Capacitance

220 µF

Lifetime

1000h

Ripple Current

220 mA

Leakage Current

<=0.02 CV or 3 µA @ 5 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

16%

Tolerance

±20%

Product Description

S$ 8.44

(exc. GST)

S$ 9.20

(inc. GST)

Quantity:

MOQ of 10 EA

Bundle of 10 EA
