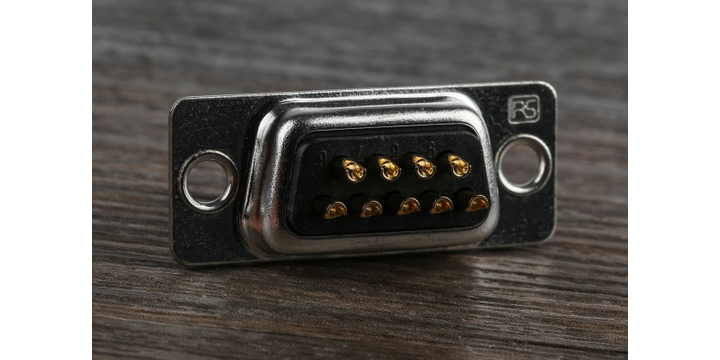

Rs Pro 5443733 9 Way Panel Mount D-sub Connector Plug, 2.77mm Pitch
Specifications
Please select at least one specification below.
Length
30.81 mm
Pitch
2.77 mm
Current Rating
5.0 A
Mounting Type
Panel Mount
Depth
12.55 mm
Voltage Rating
500 V ac
Dimensions
30.81 x 10.72 x 12.55 mm
Gender
Male
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
Number of Contacts
9
D Connector Type
Standard D-Sub
D-Sub Shell Size
E
Housing Material
Steel
Contact Material
Copper Alloy
Product Description
S$ 17.60
(exc. GST)
S$ 19.18
(inc. GST)
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
