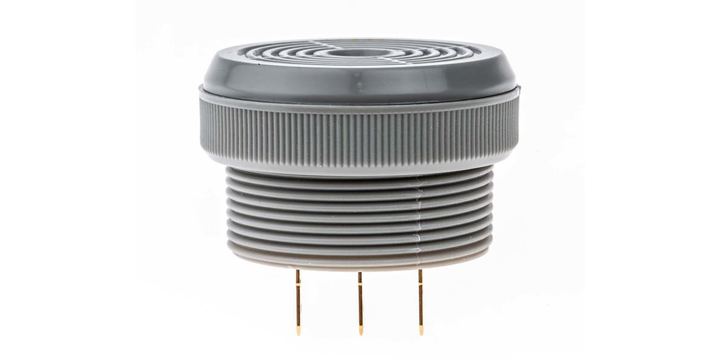

Rs Pro 5358411 97dB Panel Mount Continuous, Fast Pulse Internal Piezo Buzzer, 31.5 X 19.5mm, 6V Dc Min, 28V Dc Max
Rs Pro 5358411 97dB Panel Mount Continuous, Fast Pulse Internal Piezo Buzzer, 31.5 X 19.5mm, 6V Dc Min, 28V Dc Max
Brand:
RS Pro
Model:
5358411
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Panel Mount
Height
19.5 mm
Dimensions
31.5 x 19.5 mm
Diameter
31.5 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
6V dc
Maximum Supply Voltage
28V dc
Sound Level
97 dB
Tone Type
Continuous, Fast Pulse
Maximum Frequency
4.1 kHz
Supply Current
15 mA
Minimum Frequency
3100 Hz
