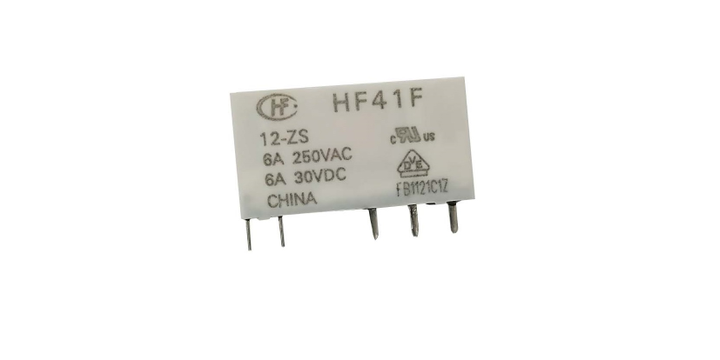

Rs Pro 476634 Pcb Mount Power Relay, 12V Dc Coil, 6A Switching Current, Spdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
28 mm
Application
Power
Mounting Type
PCB Mount
Depth
5 mm
Height
15 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
12 V dc
Standards Met
RoHS Compliant, UL E133481, VDE 40020043
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
400 V ac
Maximum Switching Voltage DC
125 V dc
Coil Power
170 mW
Coil Resistance
848 Ohm
Isolation Coil To Contact
4 kV ac
Maximum Switching Power DC
180 W
Switching Current
6 A
Maximum Switching Power AC
1.5 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
10000000 (Mechanical) cycles, 60000 (Electrical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
S$ 5.32
(exc. GST)
S$ 5.80
(inc. GST)
