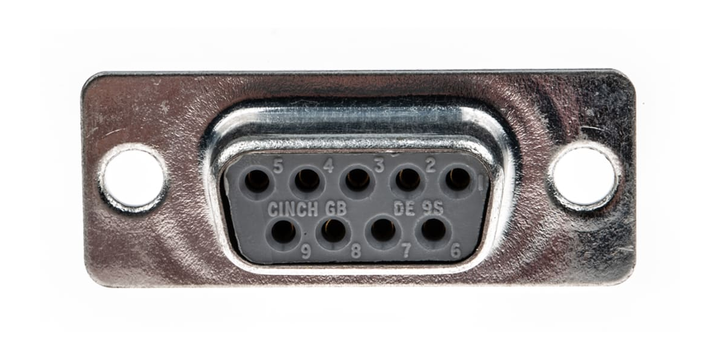

Rs Pro 473896 9 Way Panel Mount D-sub Connector Socket, 2.74mm Pitch
Rs Pro 473896 9 Way Panel Mount D-sub Connector Socket, 2.74mm Pitch
Brand:
RS Pro
Model:
473896
Technical Data Sheets
Specifications
infotip-icon
View other D Sub Connectors dimensions or variations
Please select at least one specification below.
Length
30.81 mm
Pitch
2.74 mm
Current Rating
5.0 A
Mounting Type
Panel Mount
Depth
14.85 mm
Voltage Rating
750 V dc
Dimensions
30.81 x 12.55 x 14.85 mm
Gender
Female
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold Flash
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+125°C
Number of Contacts
9
D Connector Type
Standard D-Sub
D-Sub Shell Size
E
Housing Material
Steel
Contact Material
Copper Alloy
