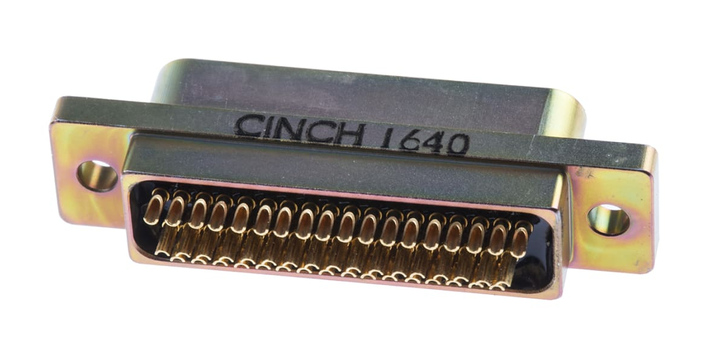

Rs Pro 2450930 51 Way Panel Mount D-sub Connector Socket
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
36.2 mm
Current Rating
3 A
Mounting Type
Panel Mount
Depth
10.64 mm
Voltage Rating
250 V dc
Dimensions
36.2 x 8.66 x 10.64 mm
Gender
Female
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+135°C
Number of Contacts
51
D Connector Type
Micro-D
Housing Material
Aluminium
Contact Material
Copper Alloy
Product Description
S$ 211.12
(exc. GST)
S$ 230.12
(inc. GST)
