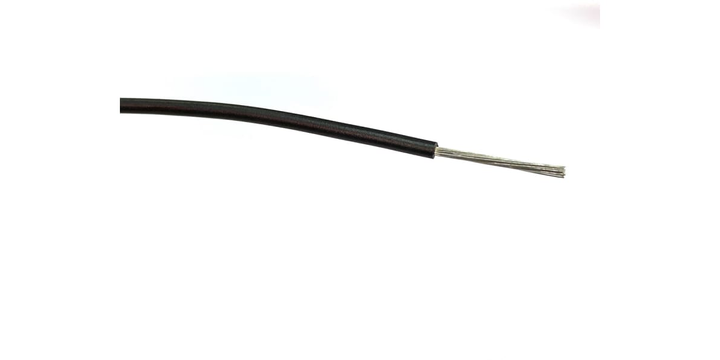

Rs Pro 1964346 Black 1 Mm² Hook up Wire, 17 Awg, 32/0.2 Mm, 500m, Pvc Insulation
Rs Pro 1964346 Black 1 Mm² Hook up Wire, 17 Awg, 32/0.2 Mm, 500m, Pvc Insulation
Brand:
RS Pro
Model:
1964346
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
500 m
Voltage Rating
1.5 kV ac
Sheath Colour
Black
Insulation Material
PVC
American Wire Gauge
17 AWG
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+85°C
Outer Diameter
2.65 mm
Conductor Material
Annealed Tinned Copper
Core Strands
32/0.2 mm
Cable Type
Single Core
Cable Shape
Single Core
Wire Style
BS4808
Insulation Wall Thickness
0.6 mm
