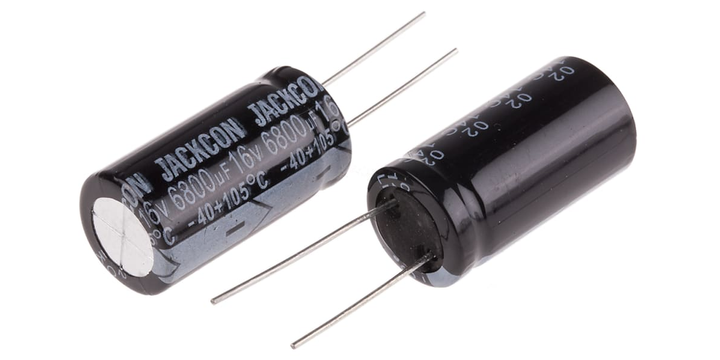

Rs Pro 1701187 6800 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Radial, Through Hole

View Brand

Rs Pro 1701187 6800 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701187

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

16 VDC

Mounting Type

Radial, Through Hole

Dimensions

16 (Dia.) x 31 mm

Capacitance

6800 µF

Lead Pitch

7.5 mm

Lifetime

2000h

Ripple Current

1.8 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

16%

Tolerance

±20%

Product Description

S$ 96.50

(exc. GST)

S$ 105.19

(inc. GST)

Quantity:

MOQ of 100 EA

Bundle of 100 EA
