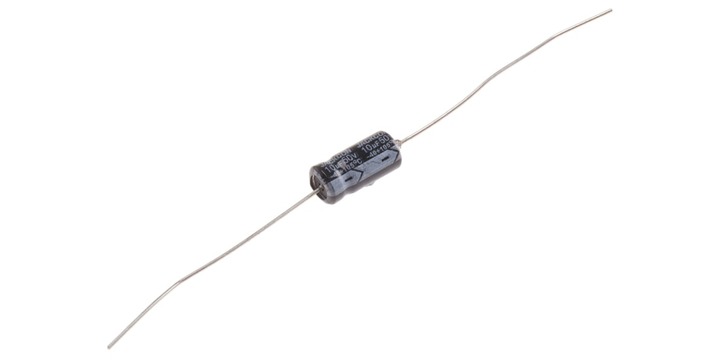

Rs Pro 1701080 10 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Axial, Through Hole

View Brand

Rs Pro 1701080 10 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Axial, Through Hole

Brand:	RS Pro
Model:	1701080

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

50 VDC

Mounting Type

Axial, Through Hole

Dimensions

6 (Dia.) x 13 mm

Capacitance

10 µF

Lifetime

1000h

Ripple Current

40 mA

Leakage Current

<=0.02 CV or 3 µA @ 5 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 175.50

(exc. GST)

S$ 191.30

(inc. GST)

Quantity:

MOQ of 500 EA

Bundle of 500 EA

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Aluminium Capacitors

836 Items

Voltage

50 V, 10 V, 63 V, 6.3 V, 35 V

Dimensions

10 (Dia.) x 16 mm, 8 (Dia.) x 5 mm, 6.3 (Dia.) x 12 mm, 6.3 (Dia.) x 7 mm, 8 (Dia.) x 9 mm

Capacitance

0.1 µF, 47 µF, 0.33 µF, 100 µF, 0.47 µF

Lead Pitch

1.5 mm, 5 mm, 2.5 mm, 10 mm, 12 mm

Lifetime

1000h, 1000 hours @ 105°C, 1000 hours @ 85°C, 2000 hours @ 105°C, 2000 hours @ 85°C

Ripple Current

245 mA, 1780 mA, 2.15 A, 55 mA, 38 mA

Leakage Current

493.5 µA, 6 µA, 18.9 µA, 3.52 µA, 103 µA
