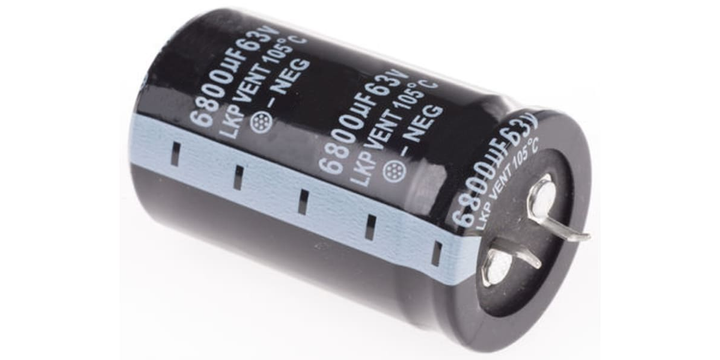

Rs Pro 1701042 6800 Microfarad Aluminium Electrolytic Capacitor 63V Dc, Snap-In

View Brand

Rs Pro 1701042 6800 Microfarad Aluminium Electrolytic Capacitor 63V Dc, Snap-In

Brand:	RS Pro
Model:	1701042

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

63 VDC

Mounting Type

Snap-In

Dimensions

30 (Dia.) x 50 mm

Capacitance

6800 µF

Lead Pitch

10 mm

Lifetime

2000h

Ripple Current

3.6 A

Leakage Current

<=0.02 CV @ 5 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 365.26

(exc. GST)

S$ 398.13

(inc. GST)

Quantity:

MOQ of 70 EA

Bundle of 70 EA
