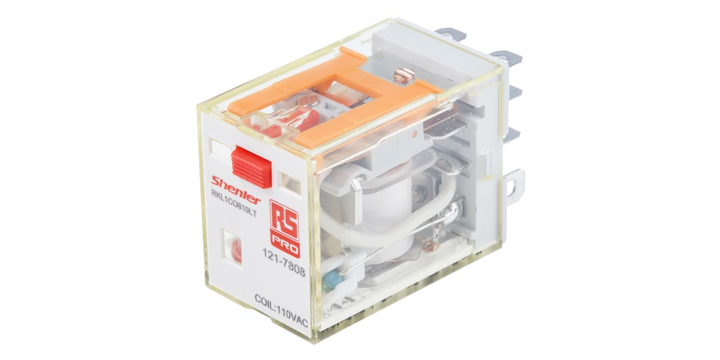

Rs Pro 1217808 Plug in Power Relay, 110V Ac Coil, 16A Switching Current, Spdt
Rs Pro 1217808 Plug in Power Relay, 110V Ac Coil, 16A Switching Current, Spdt
Brand:
RS Pro
Model:
1217808
Technical Data Sheets
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
28 mm
Application
General Purpose
Mounting Type
Plug In
Depth
21.5 mm
Height
36 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
110 V ac
Standards Met
CE, CQC, CULus, RoHS Compliant
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+55°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V ac
Maximum Switching Voltage DC
30 V dc
Coil Power
480 W
Isolation Coil To Contact
2 kV ac
Maximum Switching Power DC
900 mW
Switching Current
16 A
Maximum Switching Power AC
1.2 VA
Number of Poles
1
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
