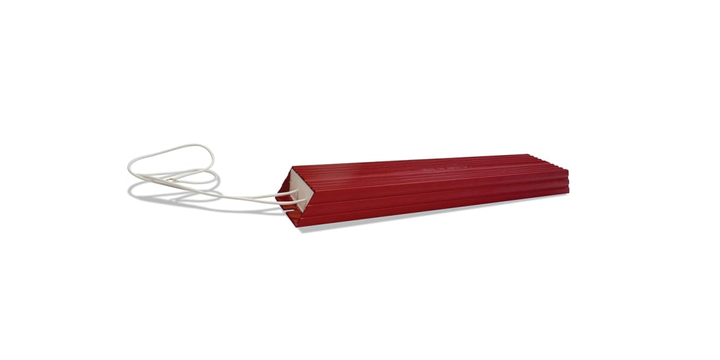

Rs Pro, 100 Ohms 600W Wire Wound Chassis Mount Resistor ±5%
Technical Data Sheets
Specifications
Please select at least one specification below.
Tolerance
±5%
Dimensions
335 x 60 x 30 mm
Overall Length
335 mm
Overall Width
60 mm
Overall Height
30 mm
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+250°C
Resistance
100Ω
Po Wer Rating
600 W
Technology
Wire Wound
Package/Case
Aluminium Housed
Termination Style
Wire Lead
Series
R600
Minimum Temperature Coefficient
-200 ppm/°C
Maximum Temperature Coefficient
+200 ppm/°C
This spec is not available in the specification table.
Product Description
S$ 142.40
(exc. GST)
S$ 155.22
(inc. GST)
Quantity:
EA
This item is sold by
SG-4570630354
