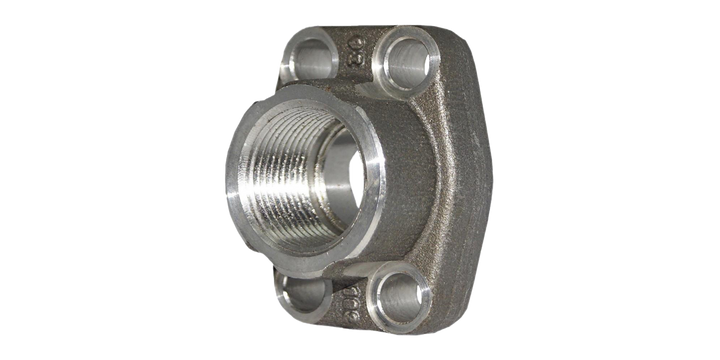

Oleo Tecnica Carbon Steel 4-Bolt Flange w/NBR O-Ring SAE-H-IT-N-3-O-24
Oleo Tecnica Carbon Steel 4-Bolt Flange w/NBR O-Ring SAE-H-IT-N-3-O-24
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-N-3-O-24 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
NPT
Flange Size
2 1/2"
Configuration
O-Ring Side
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Sold with
O-Ring
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M12
This spec is not available in the specification table.
Screw Length
45
mm
This spec is not available in the specification table.
Screw Torque (NM)
130
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-Bolt Flange w/NBR O-Ring, Sae J518 Standard
Oleo Tecnica Carbon Steel ST52.3 Sae Threaded 4-Bolt Flange, Code 61 3000 Psi, 2 1/2 Npt O-Ring Side, 4-Bolt Flange w/NBR O-Ring, Sae J518 Standard
Technical Spec
- Netto Weight 2 KG
- Unit Dimension 10.5 X 5 X 11.4 CM
- Height Dimension 11.400
- Length Dimension 10.500
- Width Dimension 5.000
- Dimension uom 10.500
S$ 28.80
(exc. GST)
S$ 31.39
(inc. GST)
