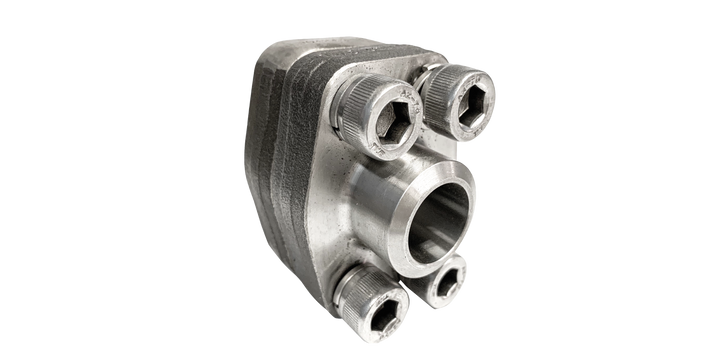

Oleo Tecnica Carbon Steel 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws SAE-H-IT-BW-6-C-30-90-65
Oleo Tecnica Carbon Steel 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws SAE-H-IT-BW-6-C-30-90-65
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-6-C-30-90-65 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
3"
Configuration
Complete Set
For Pipe Schedule
SCH160
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Sold with
Screw, O-Ring, and Washer
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M30
This spec is not available in the specification table.
Screw Length
100
mm
This spec is not available in the specification table.
Screw Torque (NM)
650
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws, Sae J518
Oleo Tecnica Carbon Steel ST52.3 Sae Flange Code 62 6000 Psi, 3 Butt Weld SCH160 Complete Set, 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws, Sae J518
Technical Spec
- Netto Weight 26.5 KG
- Unit Dimension 18 X 17.8 X 20.8 CM
- Height Dimension 20.800
- Length Dimension 18.000
- Width Dimension 17.800
- Dimension uom 18.000
S$ 232.00
(exc. GST)
S$ 252.88
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 232.00 |
Quantity:
EA
