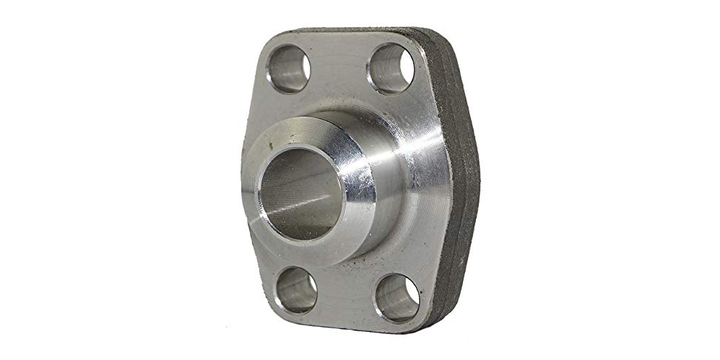

Oleo Tecnica Carbon Steel 4-bolt Flange w/ Nbr O-ring SAE-H-IT-BW-3-O-50-120
Oleo Tecnica Carbon Steel 4-bolt Flange w/ Nbr O-ring SAE-H-IT-BW-3-O-50-120
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-3-O-50-120 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
5"
Configuration
O-Ring Side
For Pipe Schedule
SCH80
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Sold with
O-Ring
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M16
This spec is not available in the specification table.
Screw Length
55
mm
This spec is not available in the specification table.
Screw Torque (NM)
295
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-bolt Flange w/ Nbr O-ring, Sae J518
Oleo Tecnica Carbon Steel ST52.3 Sae Flange Code 61 3000 Psi, 5 Butt Weld SCH80 O-ring Side, 4-bolt Flange w/ Nbr O-ring, Sae J518
Technical Spec
- Netto Weight 4 KG
- Unit Dimension 18 X 5 X 18.4 CM
- Height Dimension 18.400
- Length Dimension 18.000
- Width Dimension 5.000
- Dimension uom 18.000
S$ 94.00
(exc. GST)
S$ 102.46
(inc. GST)
