Multicomp Pro VTX-146-625-155 Transformer, 625VA, 2X 55V

View Brand

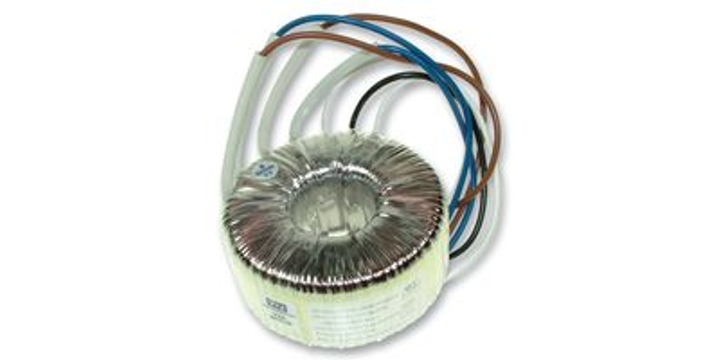

Multicomp Pro VTX-146-625-155 Transformer, 625VA, 2X 55V

Brand:	MULTICOMP PRO
Model:	VTX-146-625-155

Technical Data Sheets

Technical Data Sheet (1.05MB) EN

Specifications

View other Toroidal Transformers dimensions or variations

Termination Type

Lead Wire

Secondary Voltage Rating

2 x 55 V

Primary Voltage Rating

230 V

Power Rating

625 VA

Height

71 mm

Current Rating

5.68 A

Series Name

VTX Series

Output Voltage

55 V

Lead Length

150 mm

Transformer Mounting

Chassis

Secondary Current Nom

5.68 A

Outer Diameter

139 mm

Toroid Centre

Open

Winding Type

Single Primary, Dual Secondary

Bolt Size Max

Product Description

S$ 165.44

(exc. GST)

S$ 180.33

(inc. GST)

Lead time of 5 working days required.

Item will be ready to dispatch within the lead time specified.
