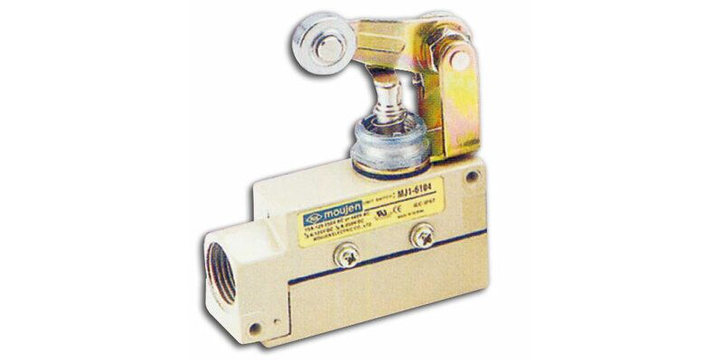

Moujen Limit Switch MJ1-6104

Features:

• Side mount switches.
• Level or plunger operation.
• Completely sealed construction.
• Dustproof, Oil-Tight, Water resistent.
• Momentary contacts.
• Regular or sealed operating heads.
• 1/2" conduit entry, captive cover screws
• Temperature range +15°F to +175°F (-10°C to +80°C)

Characteristics:

• Operation speed: 0.01mm to 1m/sec (at pin pluger)
• Operating frequency:  Mechanically: 240 operations/min.     Electrically: 20 operations/min.
• Contact resistance: 15mΩ maz.(initial)
• Insulation resistance: 100MΩ min. (at 500V DC)
• Dielectric strength: 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals 2,000 VAC, 50/60 Hz for 1 minute between current-carry part and ground.
• Vibration: Malfunction durability: 10 to 55 Hz 1.5mm double amplitude
• Shock: Mechanical durability: Approx. 1,000m/s² (approx. 100 G's)     Malfunction durability: Approx. 300m/sec² (approx. 30 G's)
• Ambient operating temperature:Operating: -10° to +80°C
• Humidity: General purpose type: 85% RH max  95%RH
• Service life: Mechanically: 20,000,000 operations min     Electrically: (1.7A, 110VAC) MAX 500,000 operations min.
