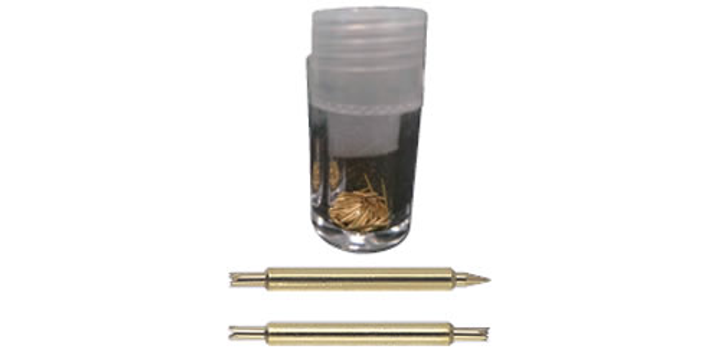

Misumi RNPA058-BU RNPA058 Series Double Tipped Contact Probes, Min Pitch0.8mm
Misumi RNPA058-BU RNPA058 Series Double Tipped Contact Probes, Min Pitch0.8mm
Brand: | MISUMI |
Model: | RNPA058-BU |
Specifications
Please select at least one specification below.
Type
Double Tipped Probe
Plunger OD
0.3
mm
Plunger Tip Shape
B (L) / U (R)
Barrel Receptacle OD
0.58
mm
Barrel Receptacle Length
4
mm
Plunger Length
0.6 (L) / 1.1 (R)
mm
Full Stroke
1.1
mm
Plunger Material
BeCu
Barrel Receptacle Material
Phosphor Bronze
2/3 Stroke Spring Pressure
25 gf
This spec is not available in the specification table.
Min. Mounting Pitch
0.8
mm
This spec is not available in the specification table.
Allowable Current
1
A
This spec is not available in the specification table.
Resistance
80 mΩ
This spec is not available in the specification table.
Product Description
S$ 63.76
(exc. GST)
S$ 69.50
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 63.76 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
