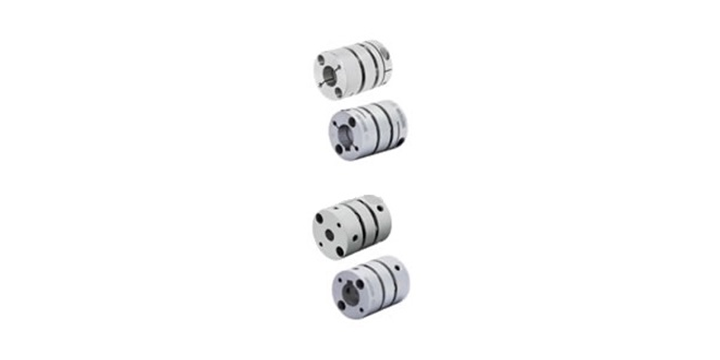

Misumi GCPSW33-6-8 Disc Couplings High Flexible, Double Disc
Misumi GCPSW33-6-8 Disc Couplings High Flexible, Double Disc
Brand: | MISUMI |
Model: | GCPSW33-6-8 |
Specifications
Please select at least one specification below.
Length
40 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
6 mm
Shaft Bore Diameter 2
8 mm
Outer Diameter
33 mm
Allowable Torque Range
3.01 - 5.00 Nm
Shaft Tightening Method
Set Screw
Shaft Bore Shape
Standard Bore
Single/Double
Double
Allowable Lateral Misalignment [mm]
0
mm
This spec is not available in the specification table.
Allowable Lateral Misalignment Range [mm]
0.02 - 0.2
mm
This spec is not available in the specification table.
Allowable Angular Misalignment [deg]
2
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Disc
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Eccentricity / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
0
mm
This spec is not available in the specification table.
Product Description
S$ 30.33
(exc. GST)
S$ 33.06
(inc. GST)
Quantity:
EA
Stock:
10 EA in stock
In Seller's Warehouse
