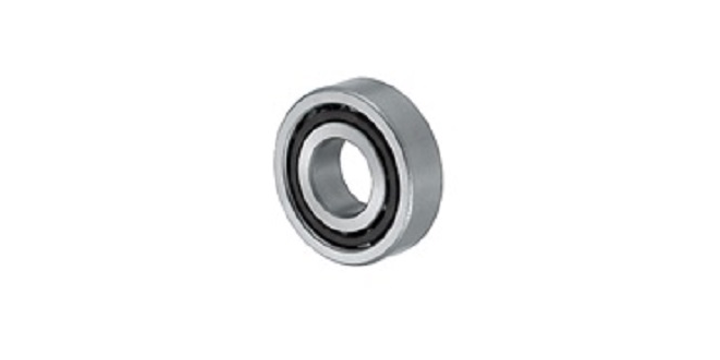

Misumi E-B7005 Angular Contact Ball Bearings Single Row
Misumi E-B7005 Angular Contact Ball Bearings Single Row
Brand:
MISUMI
Model:
E-B7005
Specifications
infotip-icon
View other Ball Bearings dimensions or variations
Please select at least one specification below.
Bearing Type
Angular Contact Ball (Single Row)
Bore Diameter
25 mm
Outside Diameter
47 mm
Width
12 mm
Bearing Material
SUJ2 Equiv.
Measurement System
Metric System
This spec is not available in the specification table.
Weight
91 g
This spec is not available in the specification table.
Environment Specification
Standard
This spec is not available in the specification table.
Load Direction
Radial / Thrust Load, Axial
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
11300 N
This spec is not available in the specification table.
Allowable Rotational Speed [rpm]
17000 rpm
This spec is not available in the specification table.
Precision (JIS)
Class 5
This spec is not available in the specification table.
Outer Ring Type
Flat
This spec is not available in the specification table.
Number of Raceway Ring Rows
Single Row
This spec is not available in the specification table.
Rolling Element Material
[Steel] SUJ2 Equiv.
This spec is not available in the specification table.
Basic Load Rating Cor (Static) [N]
7400 N
This spec is not available in the specification table.
