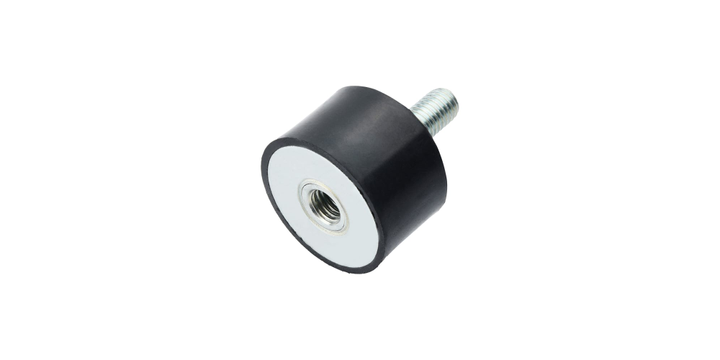

Misumi C-VD2025-18 Anti-vibration Rubber Mounts 1 Tapped Hole and 1 Threaded Stud Type
Misumi C-VD2025-18 Anti-vibration Rubber Mounts 1 Tapped Hole and 1 Threaded Stud Type
Brand: | MISUMI |
Model: | C-VD2025-18 |
Specifications
Please select at least one specification below.
Thread Size
M6
Diameter
20 mm
Overall Height
25 mm
Material
Natural Rubber (Outside), Steel (Inside)
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+100°C
Anti Vibration Mount Type
Antivibration Rubber
Shore Hardness
60 Shore
Foot Shape
Round
Connection Type
Tapped and Threaded Studs
This spec is not available in the specification table.
Application
Vibration Damping
This spec is not available in the specification table.
Spring Constan
56 N/mm
This spec is not available in the specification table.
Maximum Operating Load
460 N
This spec is not available in the specification table.
Body Color
Black
This spec is not available in the specification table.
Working Load
28～280 N
This spec is not available in the specification table.
Product Description
S$ 1.06
(exc. GST)
S$ 1.16
(inc. GST)
Quantity:
EA
Stock:
54 EA in stock
In Seller's Warehouse
