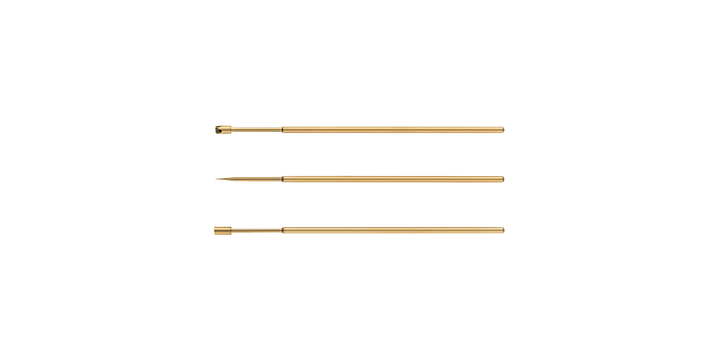

Misumi C-NP84SF-B NP84 Series Contact Probes Min Pitch3.0mm, Stroke 6.3mm
Misumi C-NP84SF-B NP84 Series Contact Probes Min Pitch3.0mm, Stroke 6.3mm
Brand: | MISUMI |
Model: | C-NP84SF-B |
Specifications
Please select at least one specification below.
Type
Contact Probe
Plunger OD
1.58
mm
Initial Spring Pressure
10 gf
Plunger Tip Shape
B Type
Barrel Receptacle OD
2
mm
Barrel Receptacle Length
24.7
mm
Plunger Length
8.3
mm
Full Stroke
6.3
mm
Plunger Material
C1730B
Barrel Receptacle Material
Phosphor Bronze
2/3 Stroke Spring Pressure
50 gf
This spec is not available in the specification table.
Min. Mounting Pitch
3.0
mm
This spec is not available in the specification table.
Allowable Current
3
A
This spec is not available in the specification table.
Resistance
50 mΩ
This spec is not available in the specification table.
Product Description
S$ 60.08
(exc. GST)
S$ 65.49
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 60.08 |
