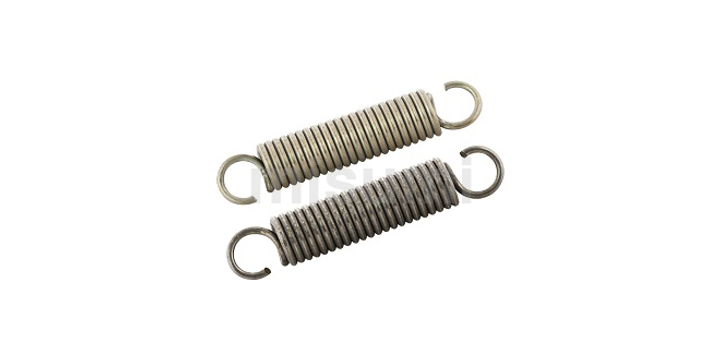

Misumi C-AWT10-50 Tension Springs Heavy Load O.D.3-10
Misumi C-AWT10-50 Tension Springs Heavy Load O.D.3-10
Brand:
MISUMI
Model:
C-AWT10-50
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SWP-A
Outer Diameter
10
mm
Allowable Load (Configurable Range)
60.01~110.00 N
Max. Load
77.47 N
Wire Diameter
1.6
mm
Free Length
50
mm
Length of Spring Used L+F
61.6
mm
Initial Tension
20.59 N
Standard Spring Constant
4.9 N/mm
Max. Deflection
11.6 mm
Hook Opposing Angle
180° (Standard)
