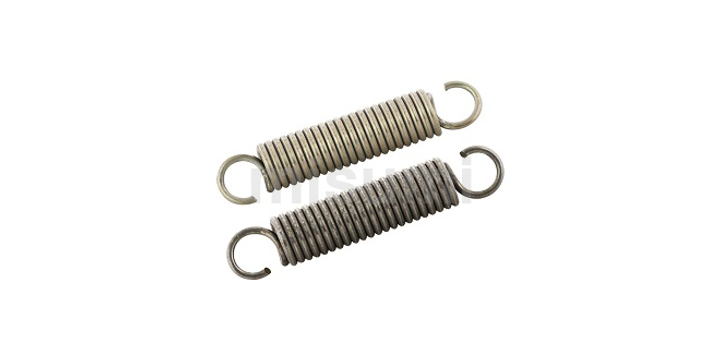

Misumi C-AWT10-40 Tension Springs Heavy Load O.D.3-10
Misumi C-AWT10-40 Tension Springs Heavy Load O.D.3-10
Brand: | MISUMI |
Model: | C-AWT10-40 |
Specifications
Please select at least one specification below.
Material
SWP-A
Outer Diameter
10
mm
Allowable Load (Configurable Range)
60.01~110.00 N
Max. Load
77.47 N
Wire Diameter
1.6
mm
Free Length
40
mm
Length of Spring Used L+F
48.4
mm
Initial Tension
20.59 N
Standard Spring Constant
6.77 N/mm
Max. Deflection
8.4
mm
Hook Opposing Angle
180° (Standard)
Type
Tension Springs
This spec is not available in the specification table.
Product Description
S$ 42.00
(exc. GST)
S$ 45.78
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 0.42 |
Quantity:
EA
MOQ of 100 EA
Bundle of 1 EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
